Balanced Diaphragm First Stage + Down Streem Adjustable Second Stage Model No. RG12+RG21( Set includes LP hose)
First Stage:
Two HP Port, 4 LP port, with rotating LP port turret. Intermidiate pressure 145 PSI +/- 5 PSI for all cylinder pressure.




Regulators
Unbalanced Piston First Stage + Down Streem Non-Adjustable Second Stage Model No. RG13+RG23( Set includes LP hose)
First Stage:
One HP Port, 4 LP port, without rotating LP port turret. Intermidiate pressure 145 PSI +/- 5 PSI @ 3500 PSI cylinder pressure and 135 PSI @ 500 PSI Cylinder Pressure.




Unbalanced Piston First Stage + Down Streem Adjustable Second Stage Model No. RG14+RG21( Set includes LP hose)
First Stage:
Two HP Port, 4 LP port, with rotating LP port turret. Intermidiate pressure 145 PSI +/- 5 PSI @ 3500 PSI cylinder pressure and 125 PSI @ 500 PSI Cylinder Pressure


Home

Diving Products
General Products
Contact
Location
Balanced Diaphragm First stage

Regulators
Unbalanced pisotn first stage

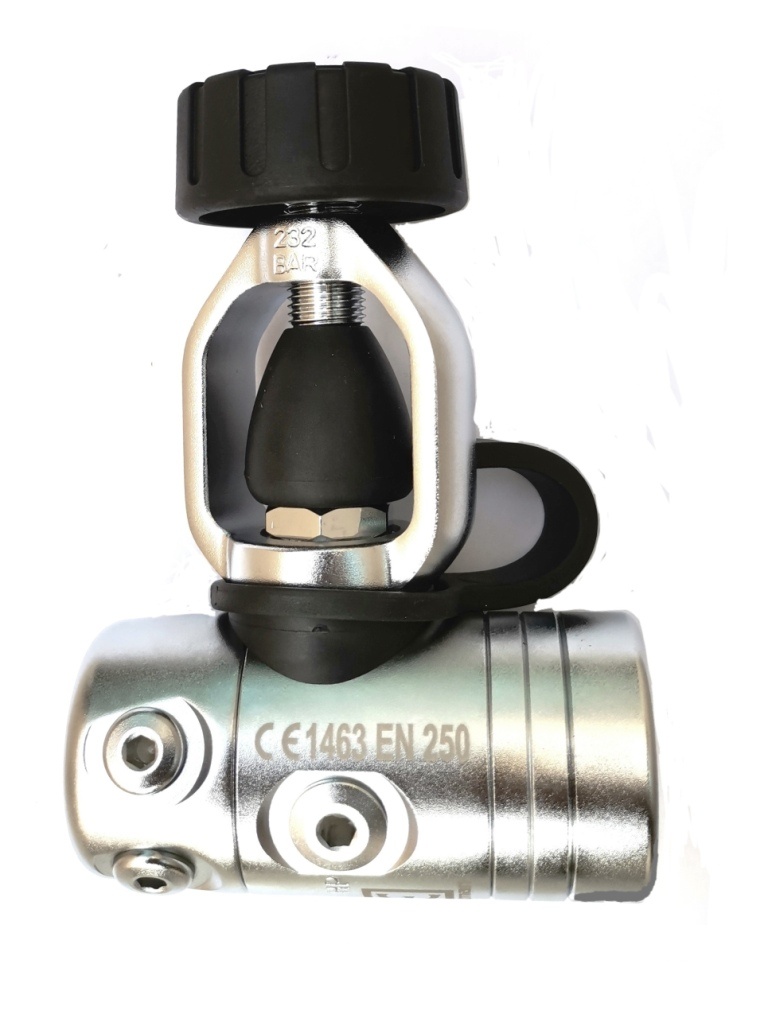

Model: R1002
 Type: Balanced Diaphragm 1st Stage Regulator
Available in yoke ans DIN models
Finish: Chrome finish
Ventilation Rate: AIR SUPPLY/ 3000PSI: 135SCFM
Intermediate Pressure: 135-140PSI
High Pressure Port: 3/16 HEX  * 2pcs
Low Pressure Port: 3/16 HEX * 3pcs
Application: Ice water, suspended solid water, personnaly use

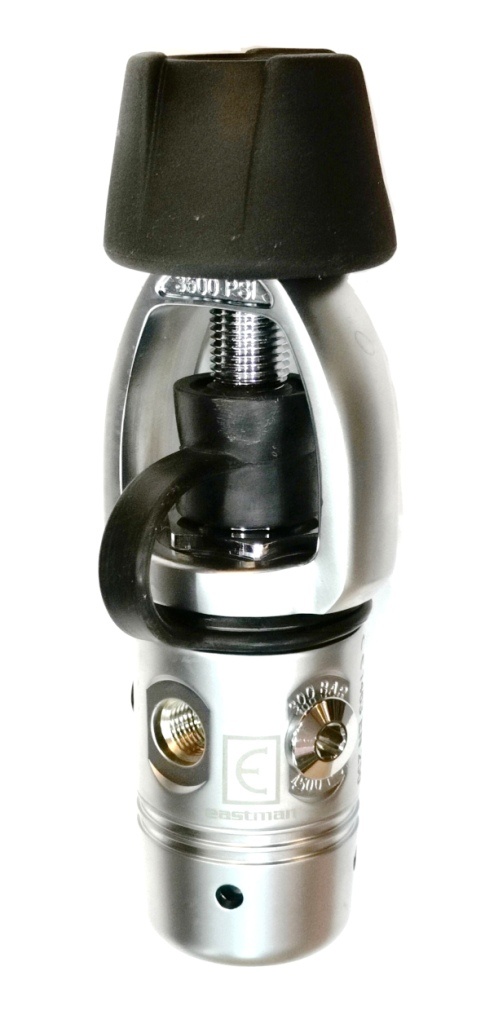

 Model: R1013
 Type: Flow Through Piston 1st Stage, unbalanced piston
 Available in yoke model only
Finish: Chrome
Ventilation Rate: AIR SUPPLY/ 3000PSI: 135SCFM
Intermediate Pressure: 135-140PSI
High Pressure Port: 3/16 HEX * 1pc
Low Pressure Port: 5/32 HEX* 3pcs
 Application: Rental, clear and clean water, warm tropical water

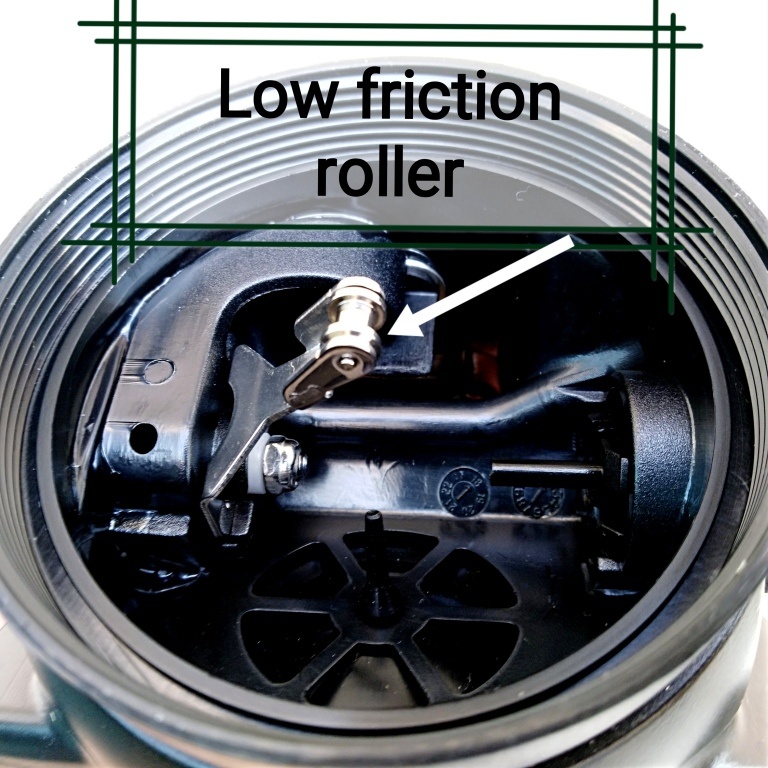

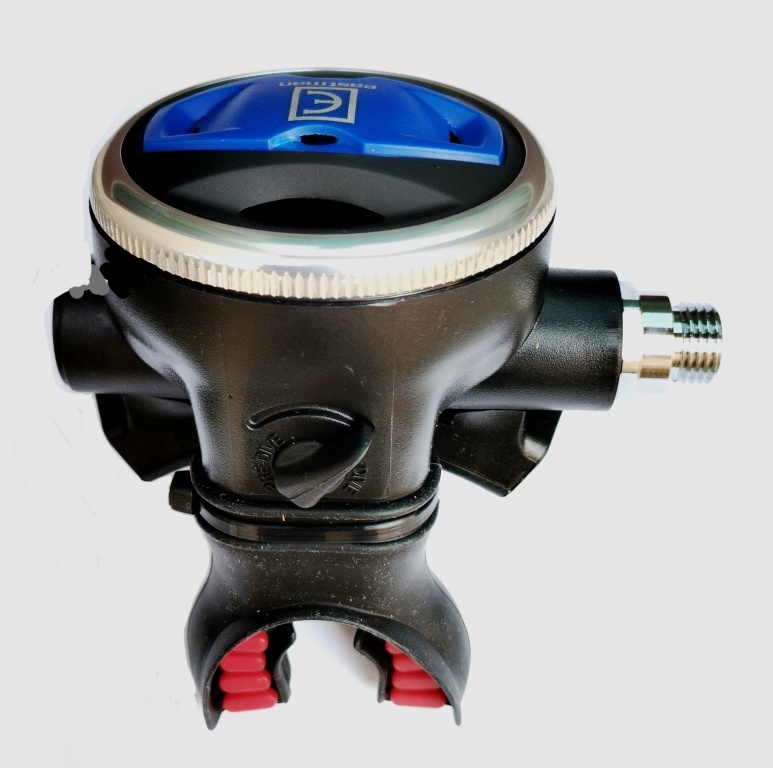

Model: R9
Type: Classical down stream demand valve
Intermediate pressure: 140 PSI
Aluminum purge button ring
Venturi assist.
Purpose: Commercial, rental

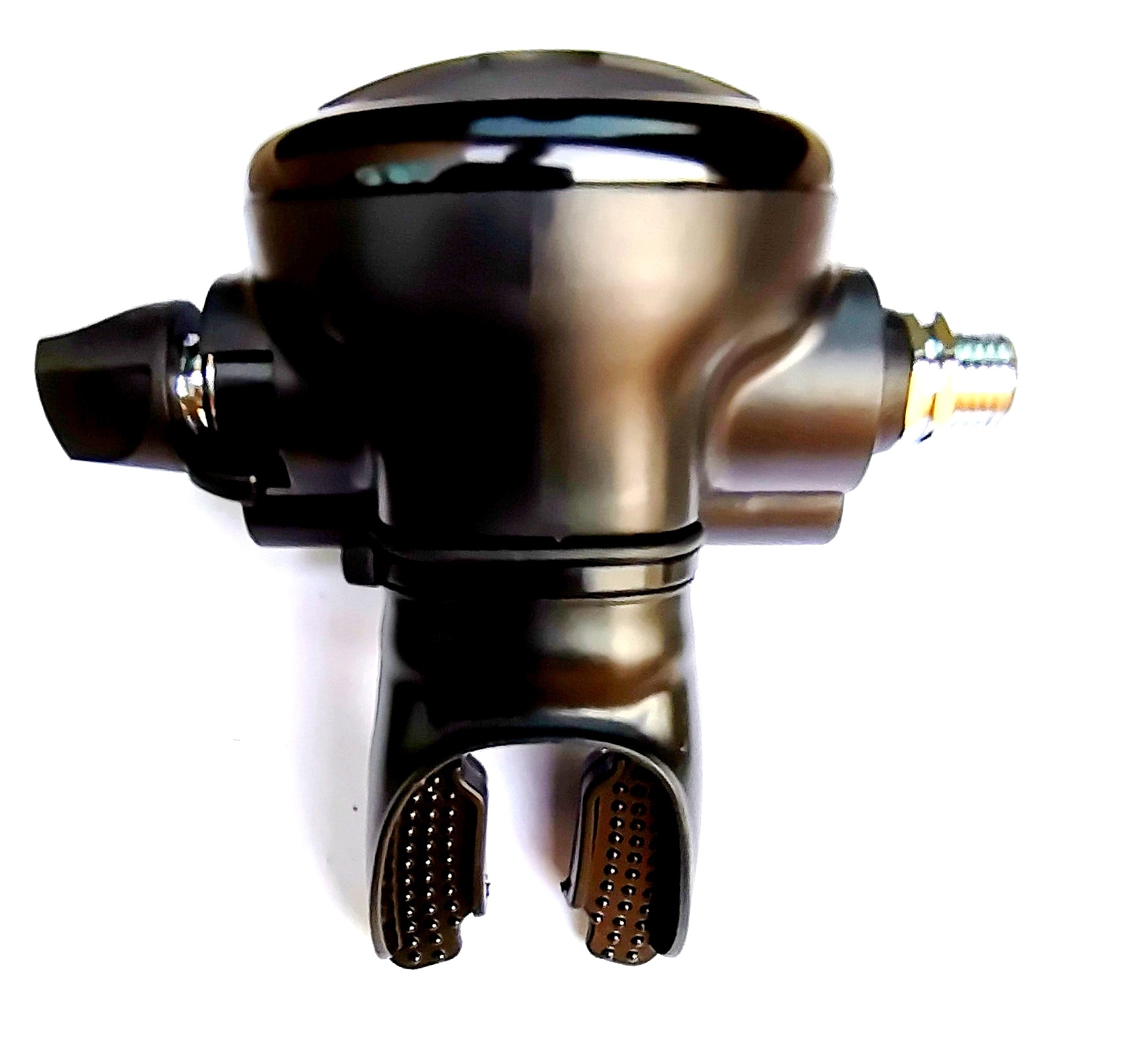

Medel: R11
Type: Pneumatically balanced secnd stage.
Intermediate pressure: 140 PSI
Aluminum purge button ring
Venturi Assist
Purpose: Personal/Professional
Available in adjustable and non adustable

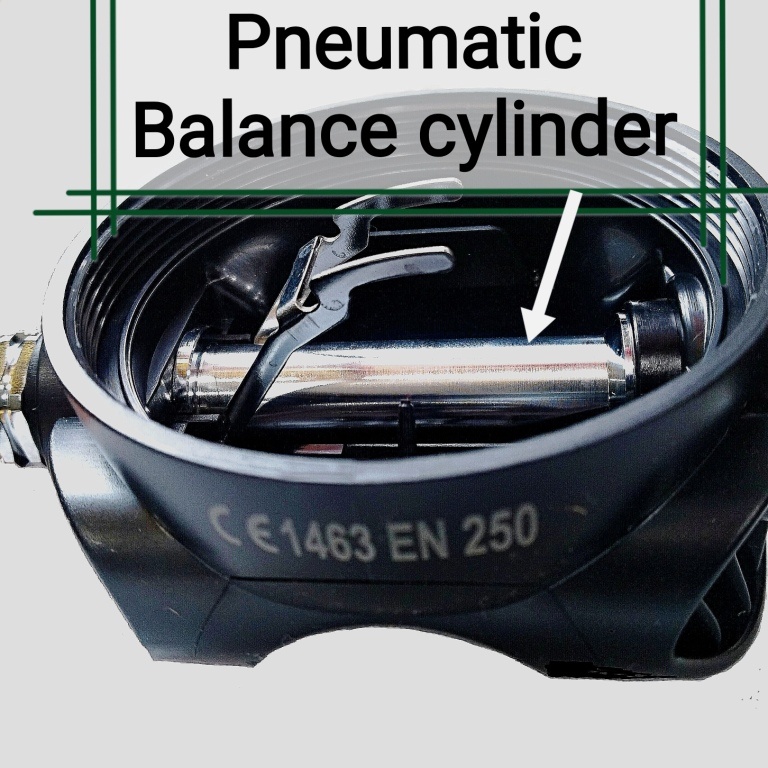

Pnematically balanced second stage


Down stream second stage

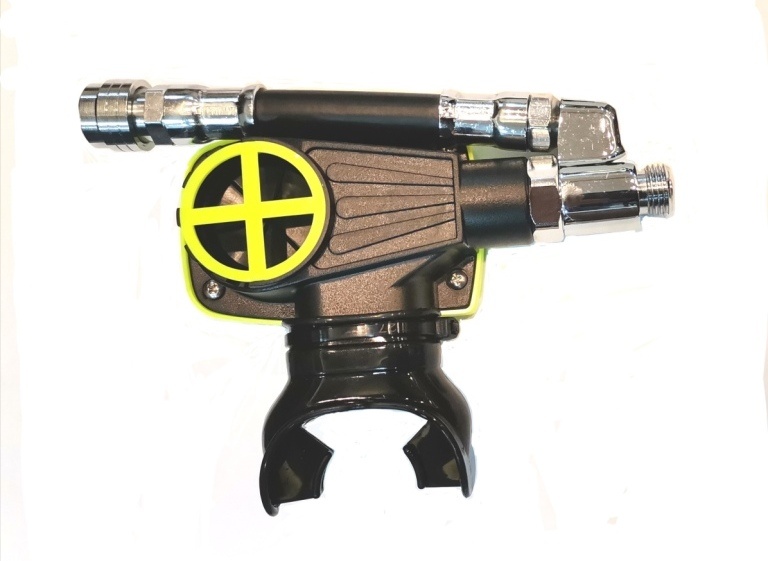

Second octopus/ BCD power inflateor


Top wiew


Bottom wiew
